Marblehead

Equation Marblehead 2019:   This design is based on the successful Ellipsis IOM concept, that of correct volume distribution rather than fashionable features with the emphasis on simplicity This design is the result of two Sailing Marblehead prototypes, The Ellipsis 1c and Ellipsis 2a.

After payment is made. I will email you the pdf file.

If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.

$25AUD





Gothic Mk3 Marblehead:  Is the latest iteration of the Gothic shape. This design is based on the successful Phoenix Mk 6 and 7 Ten Rater and includes several refinements and two alternate deck designs.

After payment is made. I will email you the pdf file.

If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.

$25AUD




gothic-xp-m-plan

Gothic XP M A narrower 2014 development of the FREE Gothic M Plan

$20AUD

After payment is made. I will email you the pdf file with 10 A4 sheets.

If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.





gothic-m-plan

GOTHIC – M $FREE Click HERE: Gothic-M-Plan to Download as pdf

FREE Marblehead-Sail-Plans

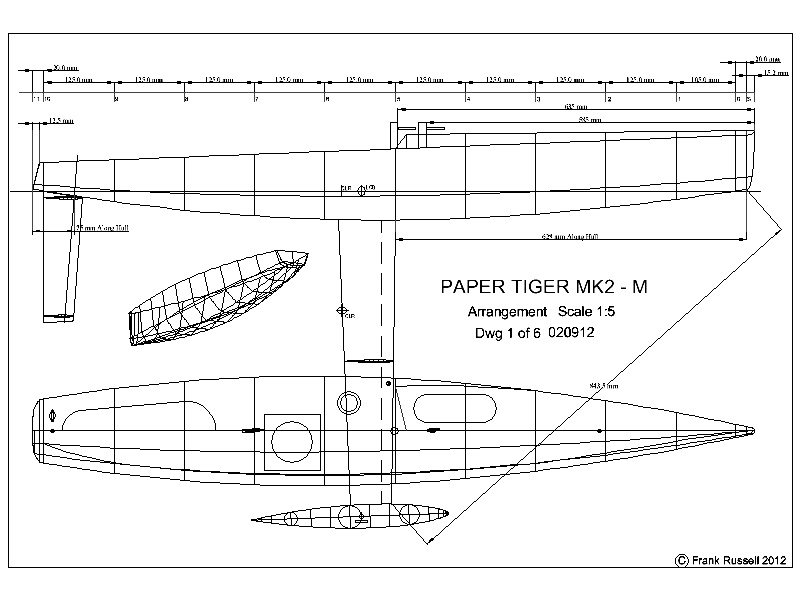

PAPER TIGER MK2 M
Modern lightweight narrow M class yacht 2012, for plywood or balsa construction, based closely
on the Paper Clip Mk2 IOM.
LOA 1285 BOA 195mm LWL 1230mm DISP 4.5kg.
Lines plan on A4 and A3 sheets. 1/5 scale arrangement. Full size sections and appendages. Full size hull and deck patterns are included which allow the hull to be built without setting up sections on a building board.
(PDF emailed or printed and posted, postage extra)
$30AUD
