Ten Rater

Phoenix 4 2020 10r Every new design presents a designer with options to consider and directions to go. After a ten year gap from the design of the P3, all 10r’s had adopted the deep keel, light weight approach. Although it did seem to work, I after the P5 I thought that the Phoenix 4 design although fast went in the wrong direction. I always have thought about what I should have done. So this is P4- 2020, with 2020 hindsight is the result.

LOA 1550mm LWL 1250mm BOA 200mm BWL 180mm, 4.2kg ballast on 600mm Draught and P1 to P3, Marblehead style sail plans on a flat deck.

$30AUD

After payment is made. I will email you the pdf file. Plan has A3, A4 sheets and a larger sheet with sections deasigned for laser cutting.

Please ask If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.





Phoenix 8 – 10r:  The Phoenix MK 8 is a larger more powerful boat than the last three Phoenix Mks. The P8 is a return to the simple design, No chines, no raised fore deck and Marblehead rig profiles as used from P1 to P3. This allows simpler light weight construction and fully open soft decks and shared rigs if you have a Marblehead.

LOA: 1650 mm LWL: 1240mm, BOA: 170mm, Draught: 630 – 680mm, Disp 5.7kg, SA: 1.00 m2

After payment is made. I will email you the pdf file.

If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.

$35AUD

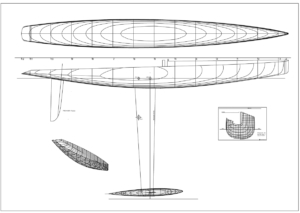

Phoenix 6.1 – 10r The P6 is a radical departure from previous Phoenix Marks. The hull shape features my latest thinking and has elements from both the P5 and GothiX 10rs. The hull features very narrow overall beam with tumblehome, high Prismatic hull shape and chine at the stern. The P6 1200mm waterline and can be ballasted from 3.8 to 4.0kg ballast.

This is the updated version 2023. If you would like the original P6 plan please specify.

After payment is made. I will email you the pdf file.

If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.

$30AUD




Phoenix 5 10r Plan

Phoenix 5 – 10r  Was designed for more wind and more open water than the P4 with 4kg ballast. With a 1200mm waterline the P5 has excellent light air performance.

Molded hulls are available.

$30AUD

After payment is made. I will email you the pdf file with 6 A4 and 3 A3 sheets.

Please ask If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.




gothix-10r-plan

GothiX 10r  –  Ten Rater CLASS YACHT  $FREE  Click HERE:  Gothix-10r to download as pdf

GothiX Youtube Video


Phoenix 4 10r Was intended as a narrower lighter version of the very successful P3. Featuring a shorter waterline at 1200mm and lighter weight, with modern deep thin foils.

The P4 is an exceptional light air boat.

$30AUD

After payment is made. I will email you the pdf file with 3 A4 and 3 A3 sheets.

Please ask If you require another format: DXF, or DWG, 2D or 3D or printed paper plan,postage extra.
